TA 785 Card Swipe
The durable, reliable solution.
- Save Time & Money By Automating
- Instantly increase payroll accuracy
- Prevent unauthorized overtime
- Uses Cards: Bar Coded, Magnetic or Proximity
- Communications: Ethernet, Serial, Modem
- Supports Power over Ethernet (option)
- Return on Investment in less than a year
- Integrated Operational Battery Backup
The Card Swipe Process in 3 Simple Steps:

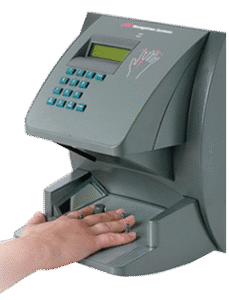

- Employee punches in/out by entering their pin# and placing right hand for verification.
- Punch data is stored in the clock until downloaded into Time and Attendance Software.
- Software administrator “polls” clock and retrieves employee punches.
- Punch data is reviewed and any necessary overrides are made, such as fix a missed punch.
- Administrator generates weekly time card report for review.
- Once time card reports are approved, administrator generates a payroll export.
- Export file is saved and imported into payroll software or web application.
- Employees checks are processed 100% accurately every time.
Our Time and Attendance Software Brings Your Business To Life
Professional Services:
Clock Installation (Nationwide)
On-Site Repairs (NYC Area)
In-House Support Team
Software Training/Configuration
Project Implementation
Software Database Hosting
Certified Repair Center
| Dimensions | 9.8”W x 6.7"H x 3.7"D |
|---|---|
| Weight | 2.5 lbs |
| Power Supply | 110/230 Vac + 10%, 100mA |
| Card Reader | Magnetic Stripe (track 1,2 or 3);Bar Code (3-of-f9, 2-of-5, 128); Proximity Reader (26, 27, 32, 34, 36, 37, 42, 44, 48 and 86 Bits) |
| Ambient Temperature | -20°C – 60°C |
| Display | 2×16 LCD backlit Alphanumeric with Decimal Point |
| Communication | Ethernet (10/100) ; Serial (RS232) ; Modem (14.4 Baud) |
| Memory | 512K RAM, Battery Backed |
| Humidity | Up to 95% RH |
